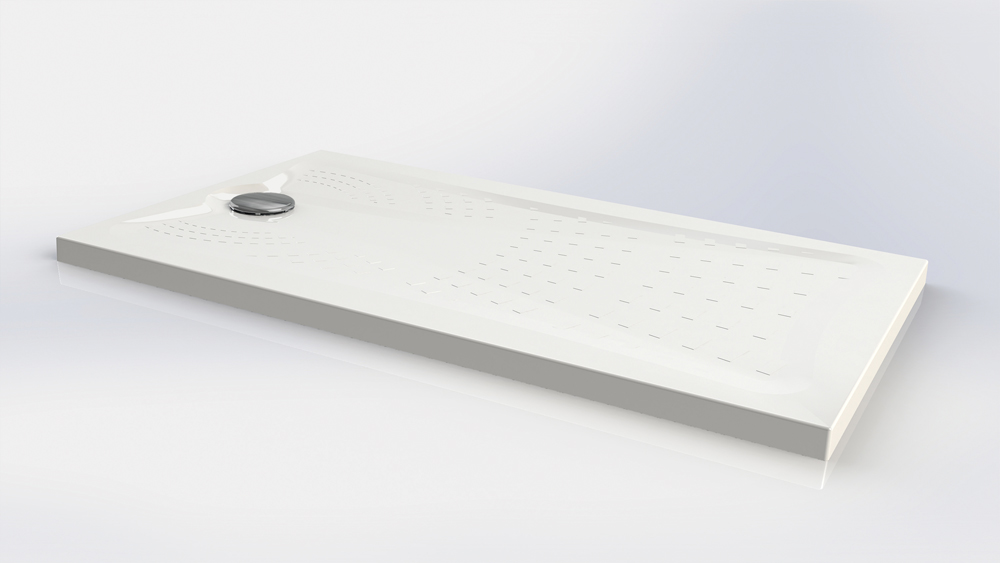

At just 24mm in height, the Mantis Shower Tray delivers a significant advancement in low access showering specification.
The Mantis Shower Tray is the industry's first ultra-slim shower tray and is the lowest available on the market.

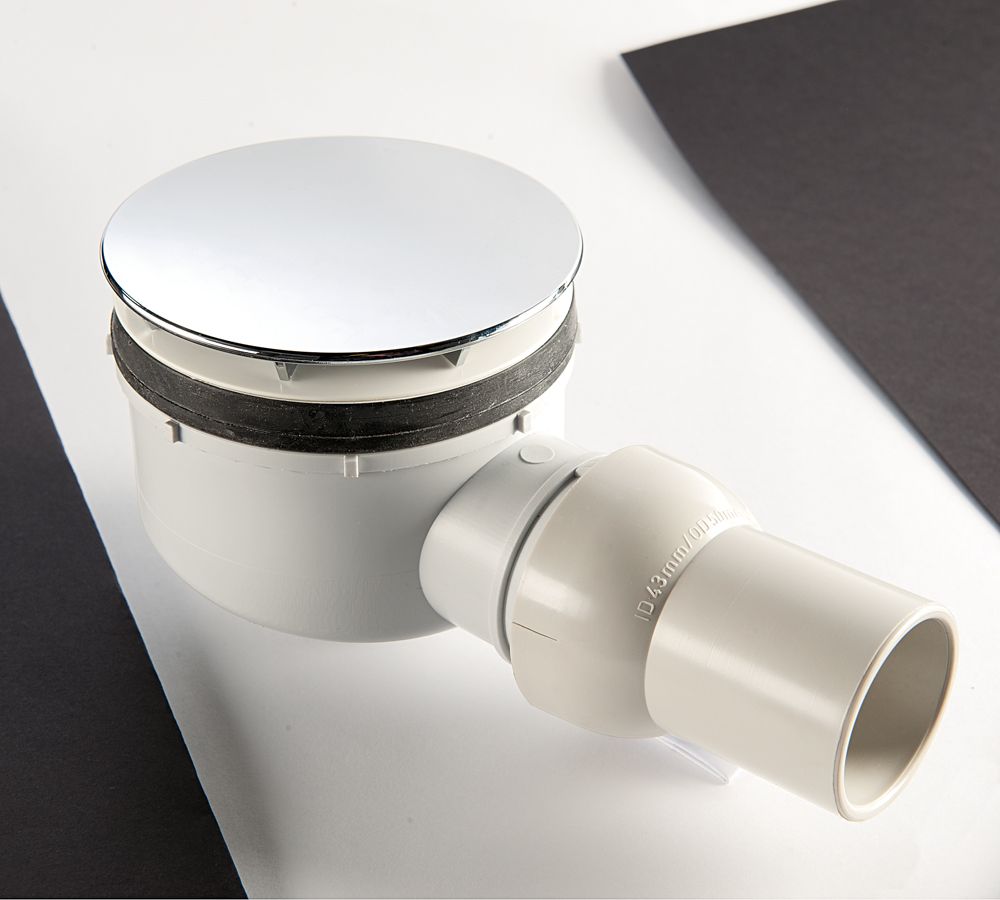

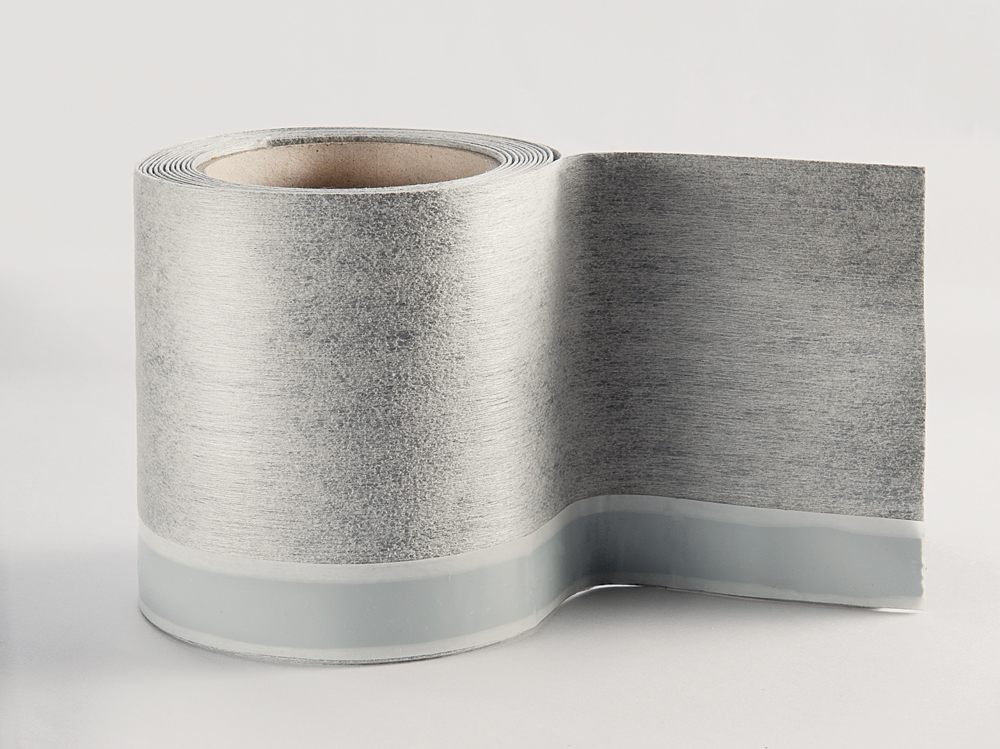

Developed after direct consultation with Occupational Therapists and Contractors, Mantis offers the perfect solution in situations when the floor former cannot be installed. Mantis can be installed above or below ground to suit specific locations, has a flow rate of 11 litres per minute and is supplied with a tile upstand and a 90mm, horizontal outlet, gravity waste as standard. The tile upstand is a high performance, self-adhesive, waterproofing membrane which provides a guaranteed seamless link between the tray and tile.

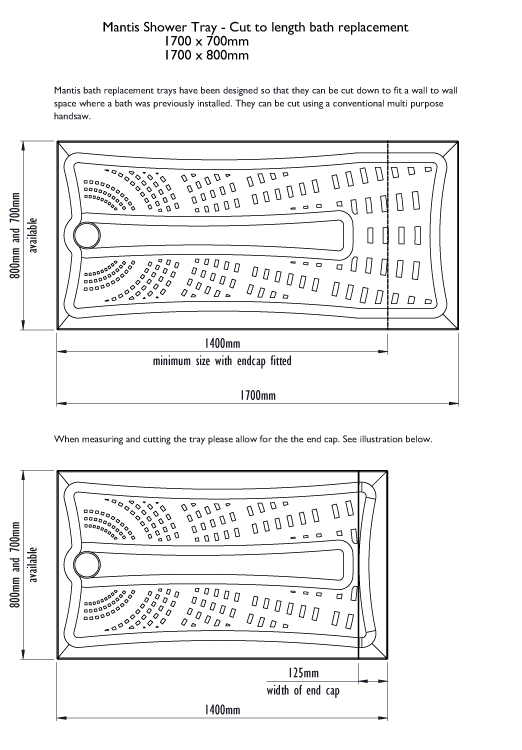

Mantis has been designed with an easy to clean, slip resistant satin tread pattern that qualifies to DIN 51097 Class "B" on slip resistance. This provides an increased grip for users in wet, soapy conditions compared to more traditional shower trays. Mantis is available in 12 sizes including 2 bath replacement sizes which can be cut down to a minimum length of 1400mm with supplied end caps to ensure a perfect fit. The bath replacement trays have been designed so that they can be cut down to fit a wall to wall space where a bath was previously installed. A conventional multi-purpose handsaw can be used to cut the shower tray. Bedding down the tray is recommended.
The ultra-slim height of only 24mm allows for direct use with a wheelchair.
Key Features
- Step in height of only 24mm

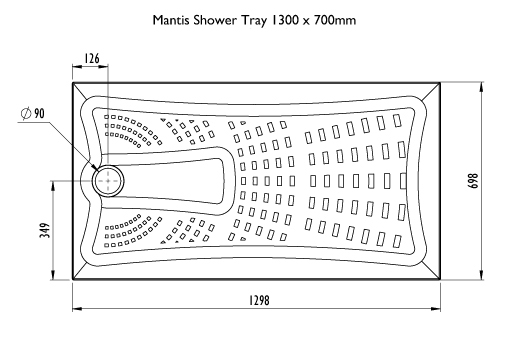

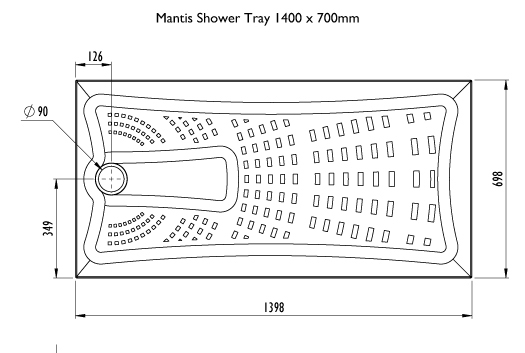

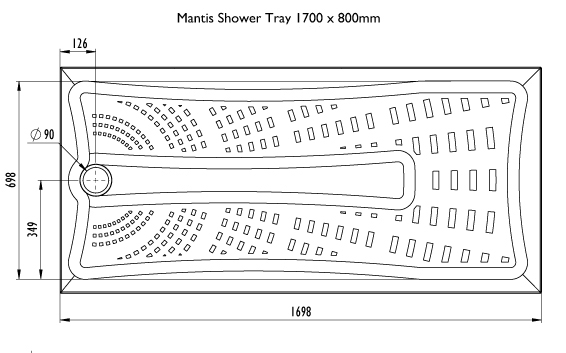

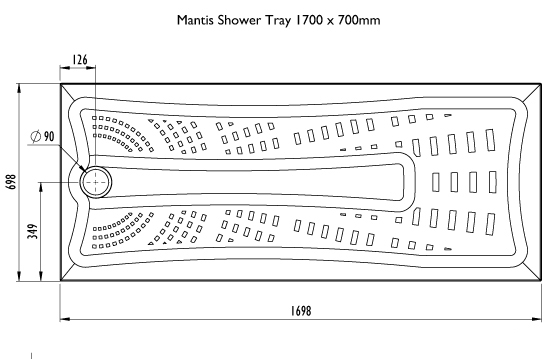

- 12 sizes in total including 2 bath replacement trays
- End centre drain position
- Flow rate: 11 l/min
- Ideally suited for use with electric showers
- 90mm waste & tile upstand supplied as standard
- Unhanded tray
- Easy clean surface
- Satin slip resistant surface - tested and qualified in accordance with DIN 51097 Class "B"
- Versatile installation - can be recessed into the floor to provide 100% level access
Due to the nature of these installations, drainage is often shallow. We recommend the use of an electric shower with these trays. A mixer valve can be used but it may be necessary to add a flow reducer.
