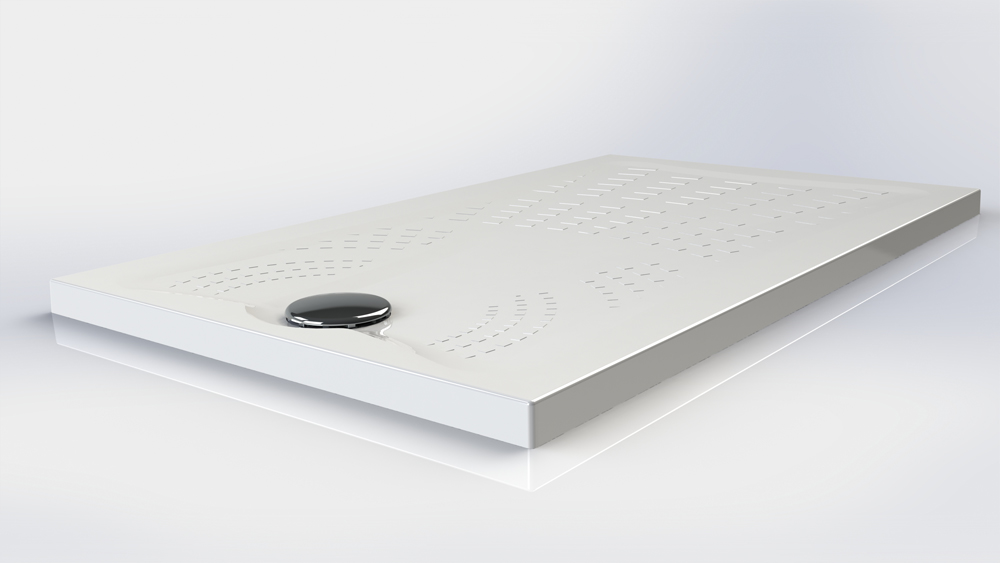

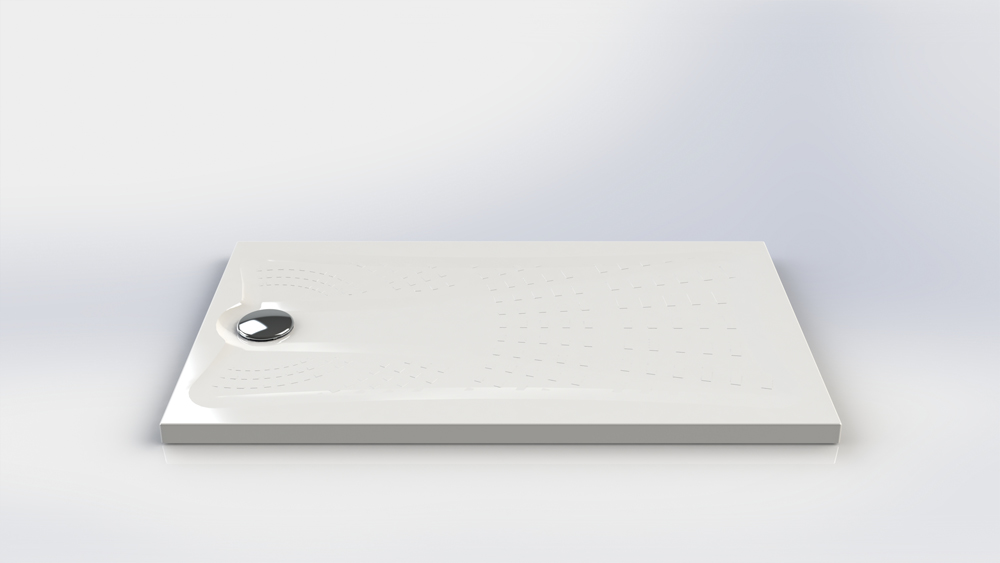

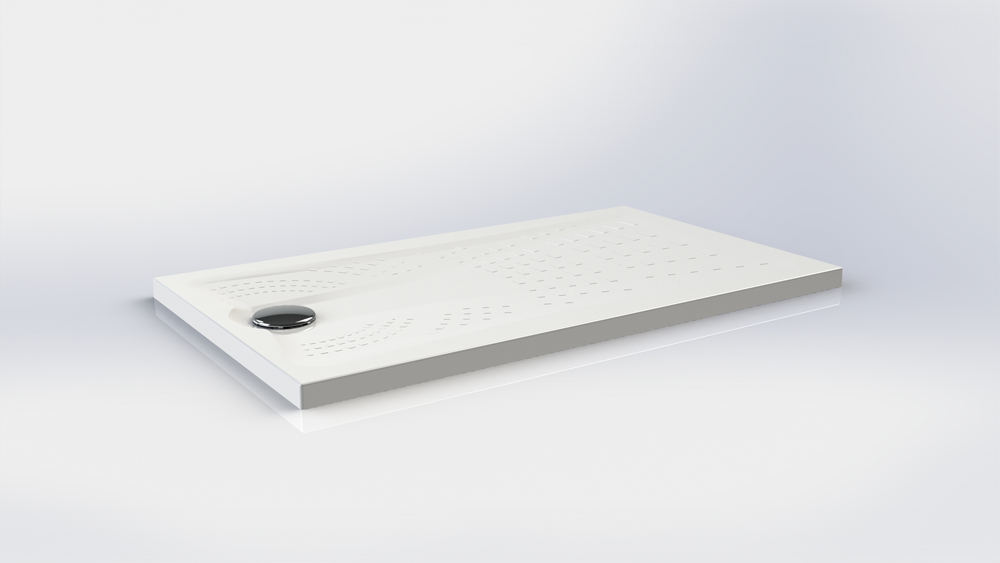

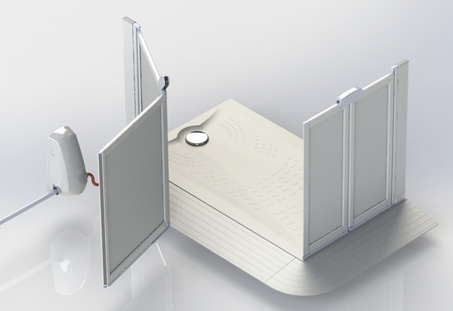

The Radiate shower tray instantly solves the problem of fitting bath replacement showers on unbreachable floors. Specifically designed for use with a pumped waste, Radiate shower trays are quick and easy to install and can be fitted with any of our folding and sliding door options.

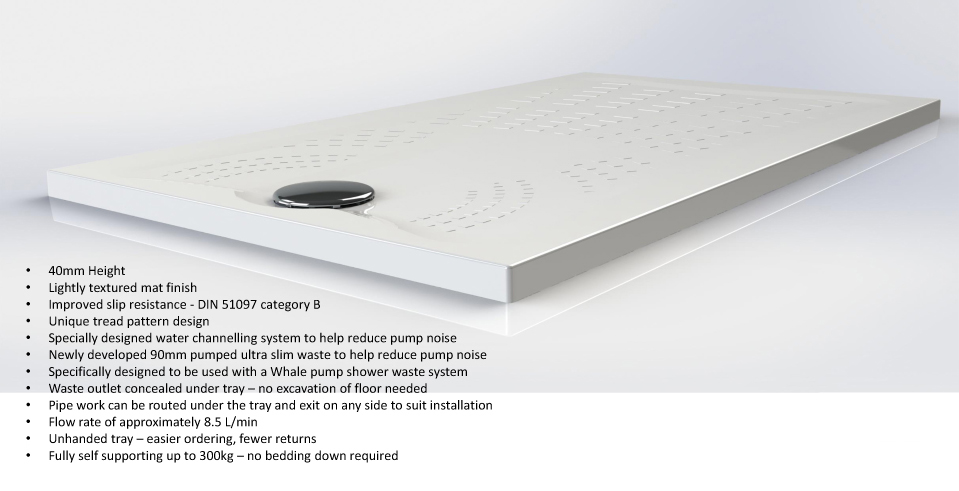

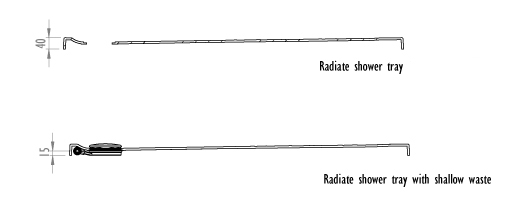

At 40mm high and with optional ramps, the Radiate shower tray is low enough to offer easy access to those with limited mobility into the showering area. GRP durable construction safely supports up to 250kg (40 stone).

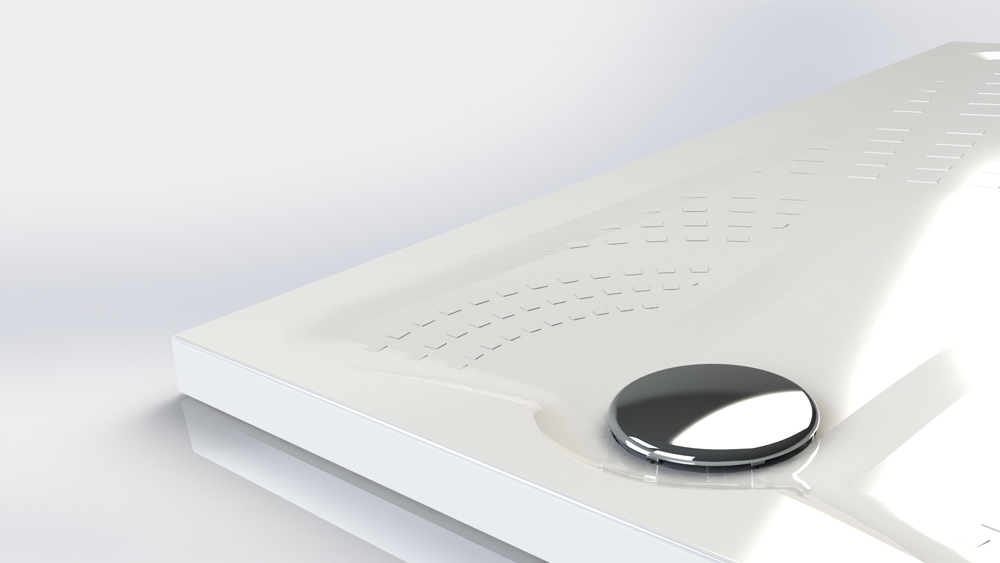

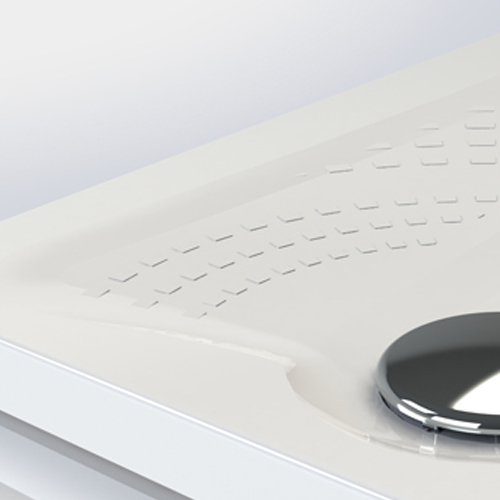

The tray features a unique water channeling tread pattern which has a reduced slip anti-shine surface. Classified to DIN Class B on slip resistance, Radiate sets a new level of care and design.

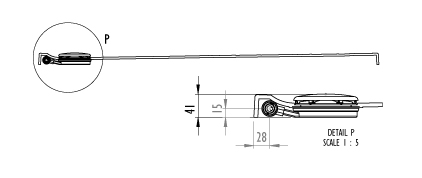

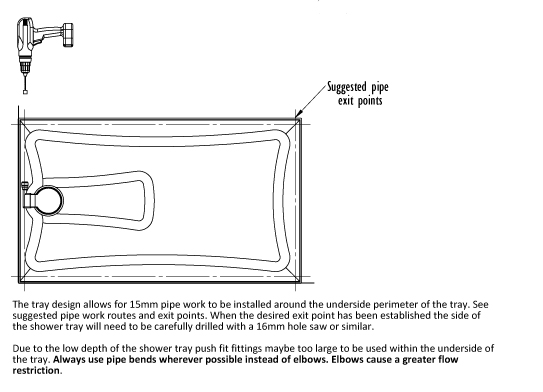

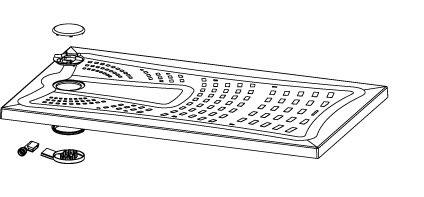

Radiate has been specifically designed for situations where gravity drainage is not possible. The pumped waste fitting, concealed perfectly within the underside of the tray, ensures that any water draining to the gully is quickly and efficiently fed to the waste pump. Concealed pipework can be taken through any side of the tray giving multiple pipe outlet options.
It is ideal for multi-storey developments and is compatible with our pumped waste options (Pump, Pump Digital Smoothflow, Pump Instant Match and Pumpmira).

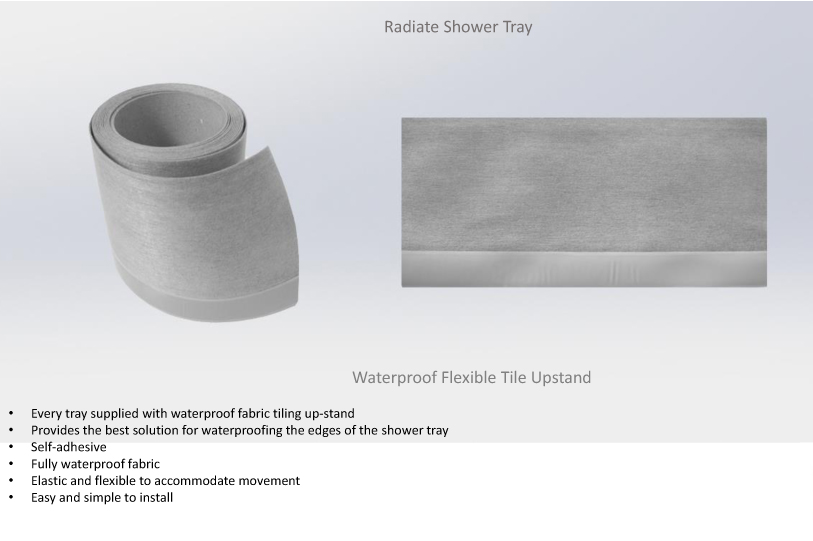

Pumped waste trap included as well as tile upstand for sealing all the edges at the wall.
